G-smartrac information
The G-smartrac is a lifting winch that drives a kernmantle rope without winding it. This allows for virtually unlimited lifting heights.
Electronic motor protection prevents lifting with overload, keeping the winch durable and wear resistant. Designed for fast deployment and safe work at height.
Product video
VideoPulley principle
Efficient load distribution while maintaining control.
Mounting on the tow hitch
Working with a deflection pulley
Ready for your project?
Request advice or schedule an on-site demo. We are happy to help with the right configuration.
Key benefits
- Soft start and braking phase
- Two speeds for lifting and lowering
- More efficient control electronics
- Improved traction sheave for longer service life
- High viscosity gear oil for higher load cycles
- Robust power and control cable connector
- Stepless speed control via pendant and remote control
- Externally readable operating hours counter
- Improved sealing package
Model overview
Available as G-smartrac 120, 150 vario and 300 vario. Ask us for advice on the right configuration.

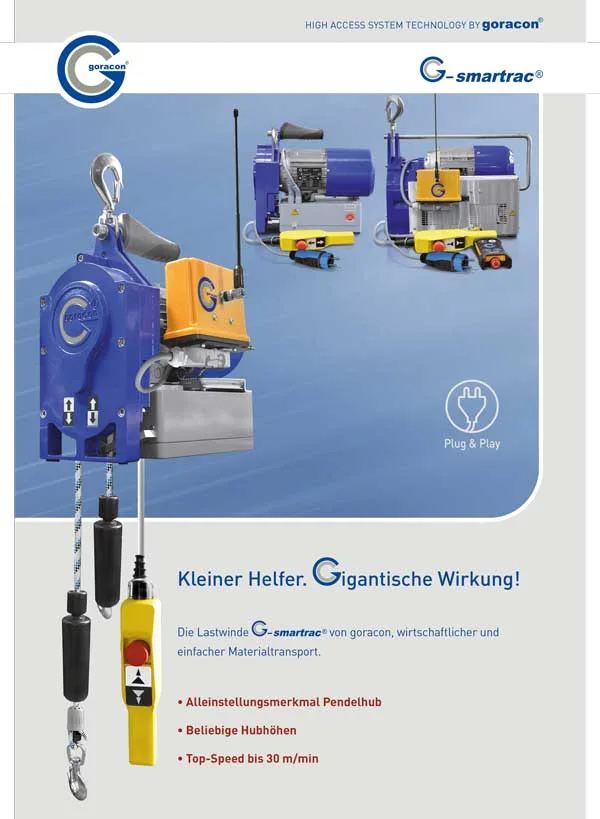

Datasheet
Download
All technical details, dimensions and configurations in one clear document.
Technical data**
| Technical data | G-smartrac 120 | G-smartrac 150 vario | G-smartrac 300 vario |
|---|---|---|---|
| Load capacity | 120 kg* | 150 kg* | 300 kg* |
| Lifting speed | 30 m/min | 13/30 m/min (with soft start) | 6/17 m/min (with soft start) |
| Nominal voltage | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz |
| Power | 0.75 kW | 0.75 kW | 1.1 kW |
| Nominal current | approx. 6 A | approx. 8.3 A | approx. 7.5 A |
| Net weight | 24 kg | 22 kg | 32 kg |
| Goracon rope | Polyester with kernmantle | Polyester with kernmantle | Polyester with kernmantle |
| Rope diameter | 9.0 mm | 9.0 mm | 11.0 mm |
| Generator power | > 2.0 kW | > 2.0 kW | > 3.0 kW |
| EMC | - | Approved for environment category C3*** | Approved for environment category C3*** |
| Remote control option | Range 200 m in open field / 433 MHz | Range 200 m in open field / 433 MHz | Range 200 m in open field / 433 MHz |
* Depending on configuration. ** Specifications subject to change.
